DMG5802LFX-7

Enlarger

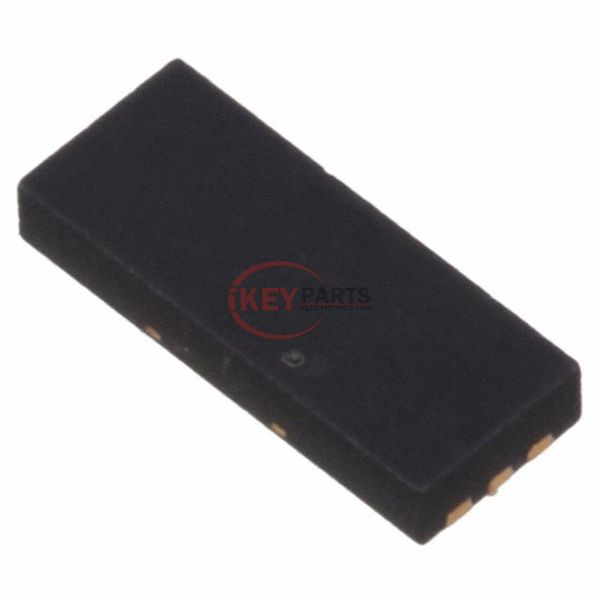

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMG5802LFX-7

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMG5802LFX-7
Description
MOSFET 2N-CH 24V 6.5A 6DFN
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMG5802LFX-7 PDF
DMG5802LFX-7 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Dual) Common Drain
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)24V
Current - Continuous Drain (Id) @ 25°C6.5A
Rds On (Max) @ Id, Vgs15mOhm @ 6.5A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs31.3nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1066.4pF @ 15V
Power - Max980mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-VFDFN Exposed Pad
Supplier Device PackageW-DFN5020-6
Request Quote Now
Request Quote Now

We can supply DMG5802LFX-7, use the request quote form to request DMG5802LFX-7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMG5802LFX-7. The price and lead time for DMG5802LFX-7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMG5802LFX-7. We look forward to working with you to establish long-term relations of cooperation.
