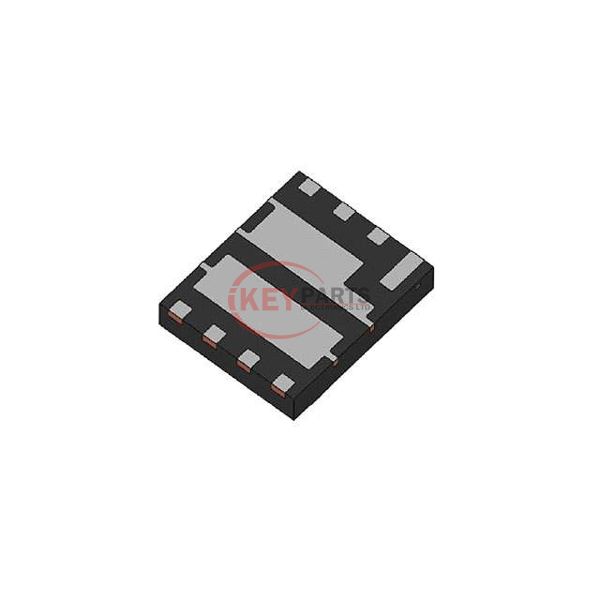

FDMD8560L

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDMD8560L

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDMD8560L
Description
MOSFET 2N-CH 46V 22A POWER
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDMD8560L PDF
FDMD8560L Tech Specifications
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureStandard
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C22A, 93A
Rds On (Max) @ Id, Vgs3.2mOhm @ 22A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs128nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds11130pF @ 30V
Power - Max2.2W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device Package8-Power 5x6
Request Quote Now
Request Quote Now

We can supply FDMD8560L, use the request quote form to request FDMD8560L pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMD8560L. The price and lead time for FDMD8560L depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMD8560L. We look forward to working with you to establish long-term relations of cooperation.
