FDMS3686S

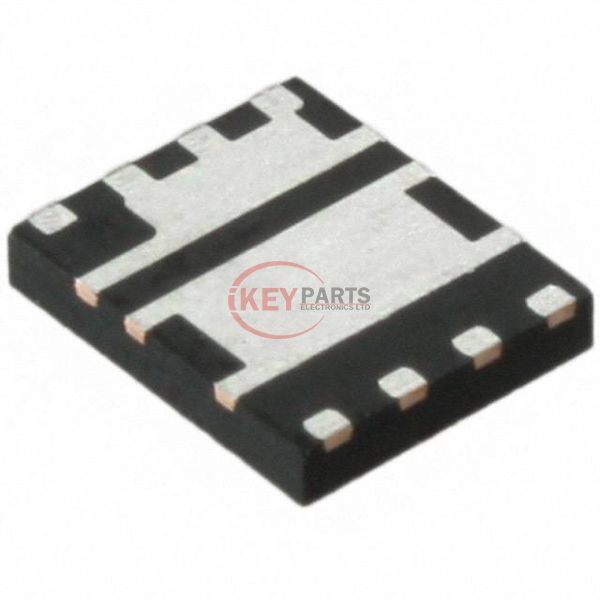

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDMS3686S

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDMS3686S
Description
MOSFET 2N-CH 30V 13A/23A POWER56
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDMS3686S PDF
In Stock
3000
FDMS3686S Tech Specifications
SeriesPowerTrench®
PackageTape & Reel (TR)Tape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C13A, 23A
Rds On (Max) @ Id, Vgs8mOhm @ 13A, 10V
Vgs(th) (Max) @ Id2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs29nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1785pF @ 10V
Power - Max1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePower56
Request Quote Now
Request Quote Now

We can supply FDMS3686S, use the request quote form to request FDMS3686S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMS3686S. The price and lead time for FDMS3686S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMS3686S. We look forward to working with you to establish long-term relations of cooperation.
