BSG0813NDIATMA1

Enlarger

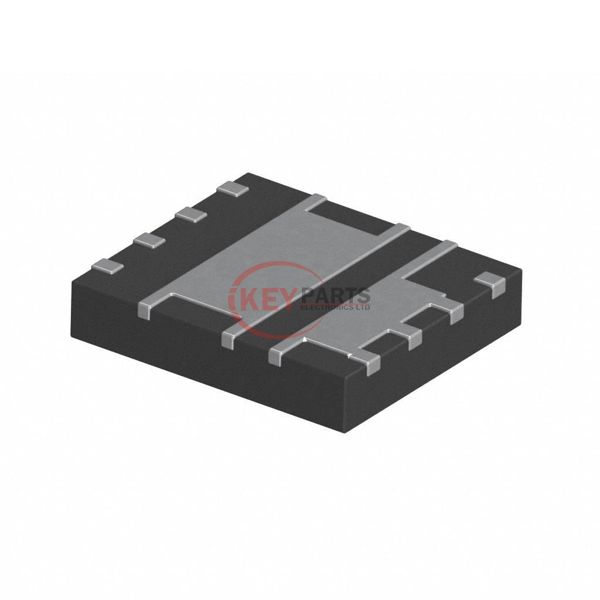

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSG0813NDIATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSG0813NDIATMA1
Description
MOSFET 2N-CH 25V 19A/33A TISON8
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSG0813NDIATMA1 PDF
In Stock
219
BSG0813NDIATMA1 Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
FET Type2 N-Channel (Dual) Asymmetrical
FET FeatureLogic Level Gate, 4.5V Drive
Drain to Source Voltage (Vdss)25V
Current - Continuous Drain (Id) @ 25°C19A, 33A
Rds On (Max) @ Id, Vgs3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.4nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1100pF @ 12V
Power - Max2.5W
Operating Temperature-55°C ~ 155°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerTDFN
Supplier Device PackagePG-TISON-8
Request Quote Now
Request Quote Now

We can supply BSG0813NDIATMA1, use the request quote form to request BSG0813NDIATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSG0813NDIATMA1. The price and lead time for BSG0813NDIATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSG0813NDIATMA1. We look forward to working with you to establish long-term relations of cooperation.
