Series | - | |
Package | Bulk | |
Part Status | Active | |
FET Type | 4 N-Channel (H-Bridge) | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 1000V (1kV) | |
Current - Continuous Drain (Id) @ 25°C | 18A | |
Rds On (Max) @ Id, Vgs | 540mOhm @ 9A, 10V | |
Vgs(th) (Max) @ Id | 5V @ 2.5mA | |
Gate Charge (Qg) (Max) @ Vgs | 154nC @ 10V | |
Input Capacitance (Ciss) (Max) @ Vds | 4350pF @ 25V | |
Power - Max | 357W | |
Operating Temperature | -40°C ~ 150°C (TJ) | |
Mounting Type | Chassis Mount | |

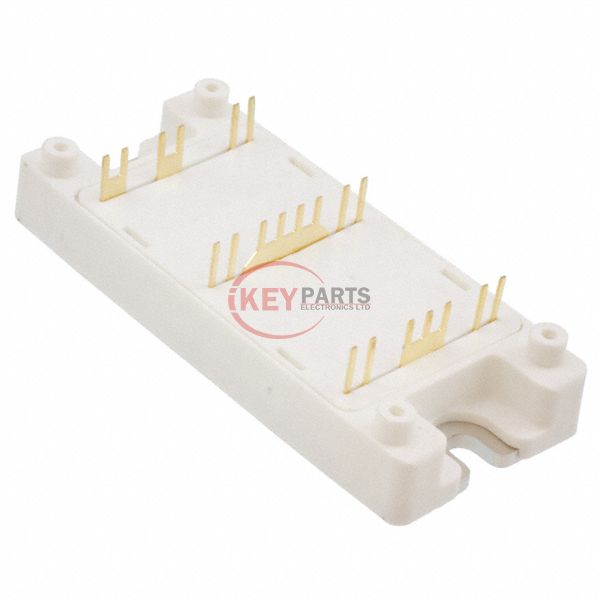

Package / Case | SP4 | |
Supplier Device Package | SP4 |
We can supply APTM100H45STG, use the request quote form to request APTM100H45STG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number APTM100H45STG. The price and lead time for APTM100H45STG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# APTM100H45STG. We look forward to working with you to establish long-term relations of cooperation.
![]() |
