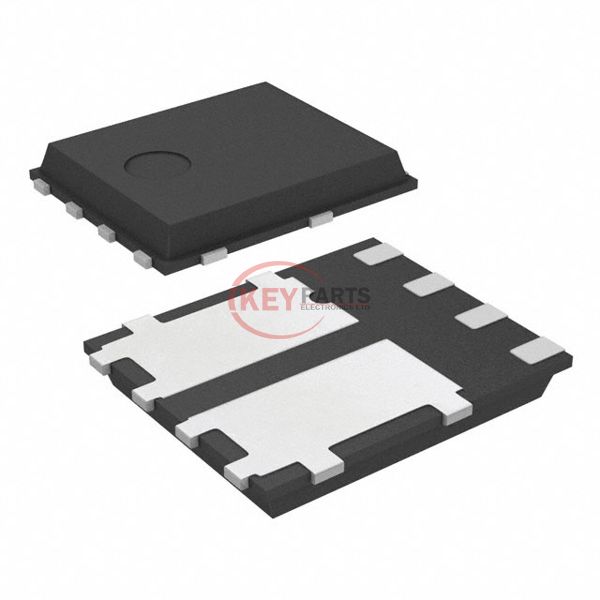

STL20DN10F7

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STL20DN10F7

Manufacturer :
STMicroelectronics
Mfr. Part # :
STL20DN10F7
Description
MOSFET 2N-CH 100V 20A PWRFLAT56
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STL20DN10F7 PDF
STL20DN10F7 Tech Specifications
SeriesDeepGATE™, STripFET™ VII
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureStandard
Drain to Source Voltage (Vdss)100V
Current - Continuous Drain (Id) @ 25°C20A
Rds On (Max) @ Id, Vgs67mOhm @ 2.5A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.8nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds408pF @ 50V
Power - Max62.5W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerVDFN
Supplier Device PackagePowerFlat™ (5x6)
Request Quote Now
Request Quote Now

We can supply STL20DN10F7, use the request quote form to request STL20DN10F7 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STL20DN10F7. The price and lead time for STL20DN10F7 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STL20DN10F7. We look forward to working with you to establish long-term relations of cooperation.
