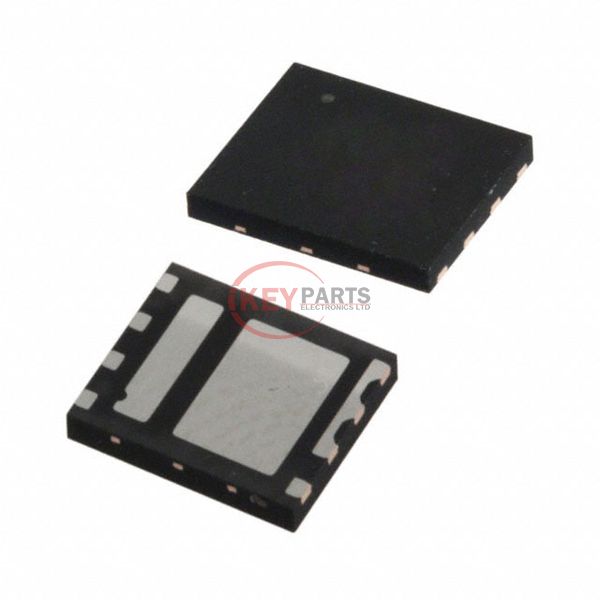

FDMS7700S

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDMS7700S

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDMS7700S
Description
MOSFET 2N-CH 30V 12A/22A POWER56
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDMS7700S PDF
In Stock
30000
FDMS7700S Tech Specifications
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)30V
Current - Continuous Drain (Id) @ 25°C12A, 22A
Rds On (Max) @ Id, Vgs7.5mOhm @ 12A, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs28nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds1750pF @ 15V
Power - Max1W
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case8-PowerWDFN
Supplier Device PackagePower56
Request Quote Now
Request Quote Now

We can supply FDMS7700S, use the request quote form to request FDMS7700S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDMS7700S. The price and lead time for FDMS7700S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDMS7700S. We look forward to working with you to establish long-term relations of cooperation.
