FDM2509NZ

Enlarger

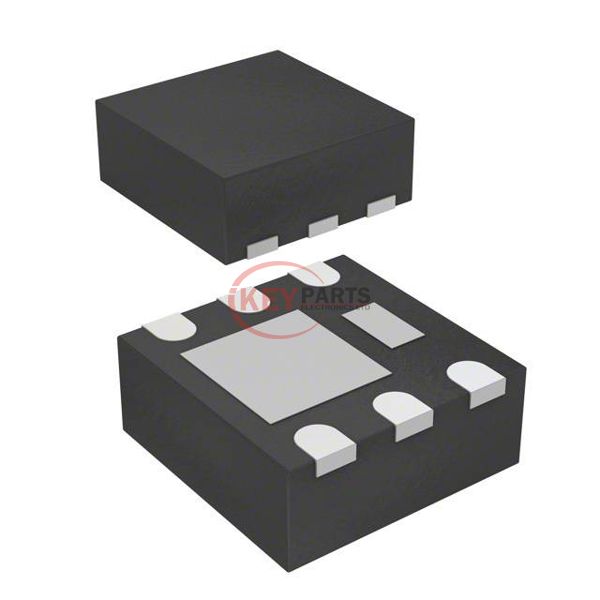

Lmages are for reference only See Product Specitications

Rochester Electronics FDM2509NZ

Manufacturer :
Rochester Electronics
Mfr. Part # :
FDM2509NZ
Description
SMALL SIGNAL N-CHANNEL MOSFET
Catalog
Transistors - FETs, MOSFETs - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDM2509NZ PDF
FDM2509NZ Tech Specifications
SeriesPowerTrench®
PackageBulk
Part StatusObsolete
FET Type2 N-Channel (Dual)
FET FeatureLogic Level Gate
Drain to Source Voltage (Vdss)20V
Current - Continuous Drain (Id) @ 25°C8.7A
Rds On (Max) @ Id, Vgs18mOhm @ 8.7A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs17nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds1200pF @ 10V
Power - Max800mW
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-WFDFN Exposed Pad
Supplier Device Package6-MicroFET (2x5)
Request Quote Now
Request Quote Now

We can supply FDM2509NZ, use the request quote form to request FDM2509NZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDM2509NZ. The price and lead time for FDM2509NZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDM2509NZ. We look forward to working with you to establish long-term relations of cooperation.
