BC56PASX

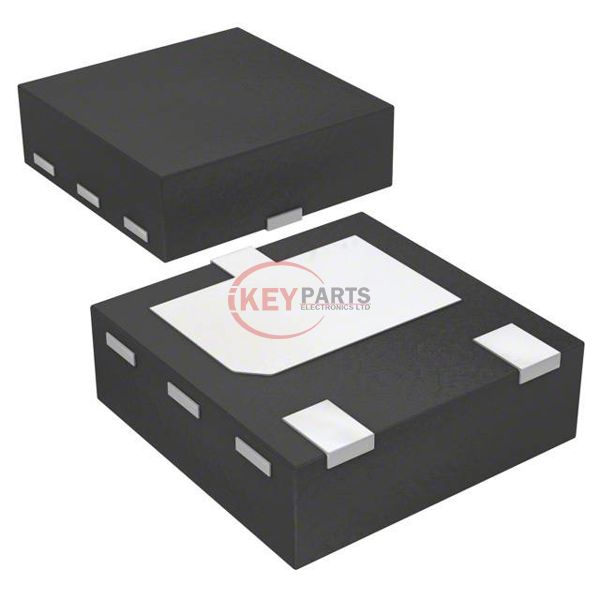

Enlarger

Lmages are for reference only See Product Specitications

Nexperia BC56PASX

Manufacturer :
Nexperia
Mfr. Part # :
BC56PASX
Description
IC TRANS NPN 1A 80V SOT1061
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BC56PASX PDF
In Stock
3000
BC56PASX Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Transistor TypeNPN
Current - Collector (Ic) (Max)1 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce63 @ 150mA, 2V
Power - Max420 mW
Frequency - Transition180MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case3-UDFN Exposed Pad
Supplier Device PackageDFN2020D-3
Request Quote Now
Request Quote Now

We can supply BC56PASX, use the request quote form to request BC56PASX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BC56PASX. The price and lead time for BC56PASX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BC56PASX. We look forward to working with you to establish long-term relations of cooperation.
