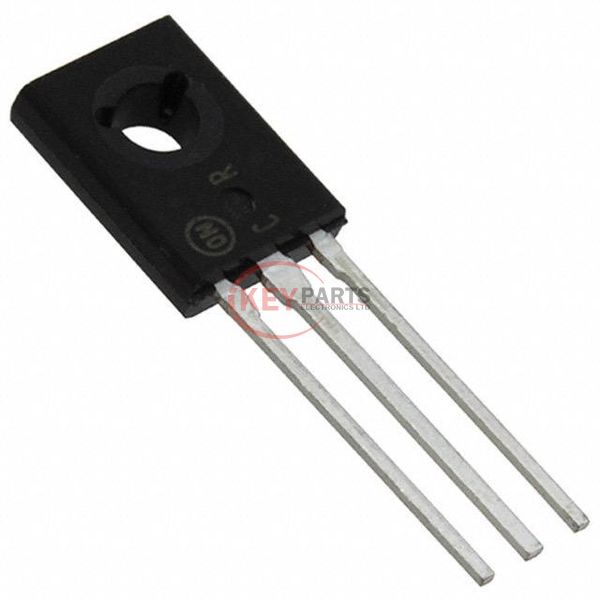

BD680AG

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor BD680AG

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
BD680AG
Description
TRANS PNP DARL 80V 4A TO225AA
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BD680AG PDF
In Stock
266
BD680AG Tech Specifications
Series-
PackageBulk
Part StatusActive
Transistor TypePNP - Darlington
Current - Collector (Ic) (Max)4 A
Voltage - Collector Emitter Breakdown (Max)80 V
Vce Saturation (Max) @ Ib, Ic2.8V @ 40mA, 2A
Current - Collector Cutoff (Max)500µA
DC Current Gain (hFE) (Min) @ Ic, Vce750 @ 2A, 3V
Power - Max40 W
Frequency - Transition-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-225AA, TO-126-3
Supplier Device PackageTO-225AA
Request Quote Now
Request Quote Now

We can supply BD680AG, use the request quote form to request BD680AG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BD680AG. The price and lead time for BD680AG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BD680AG. We look forward to working with you to establish long-term relations of cooperation.
