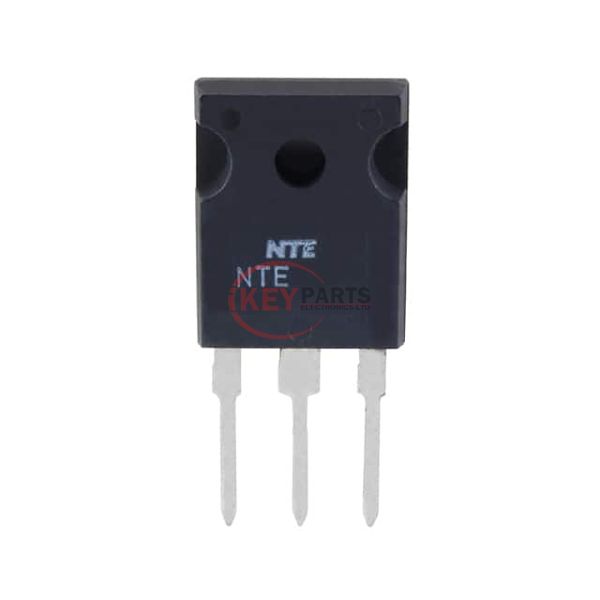

TIP36A

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. TIP36A

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
TIP36A
Description
TRANS PNP 60V 25A TO218
Catalog
Transistors - Bipolar (BJT) - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TIP36A PDF
In Stock
507
TIP36A Tech Specifications
Series-
PackageBag
Part StatusActive
Transistor TypePNP
Current - Collector (Ic) (Max)25 A
Voltage - Collector Emitter Breakdown (Max)60 V
Vce Saturation (Max) @ Ib, Ic-
Current - Collector Cutoff (Max)-
DC Current Gain (hFE) (Min) @ Ic, Vce10 @ 15A, 4V
Power - Max125 W
Frequency - Transition3MHz
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-218-3
Supplier Device PackageTO-218
Request Quote Now
Request Quote Now

We can supply TIP36A, use the request quote form to request TIP36A pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TIP36A. The price and lead time for TIP36A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TIP36A. We look forward to working with you to establish long-term relations of cooperation.
