BAV199-AQ

Enlarger

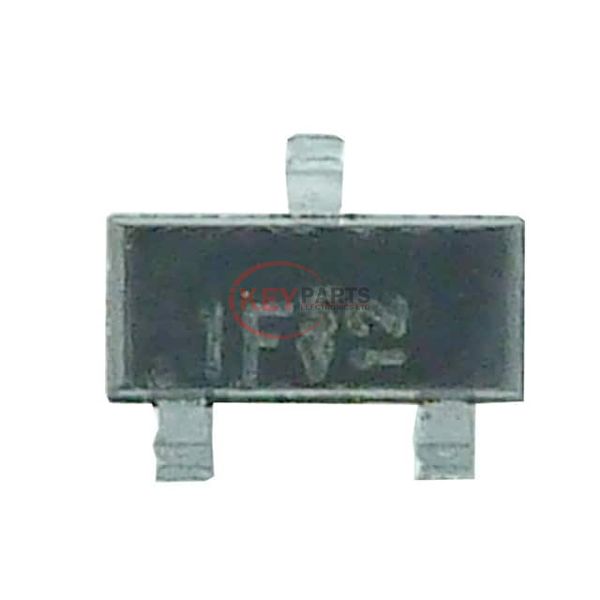

Lmages are for reference only See Product Specitications

DComponents BAV199-AQ

Manufacturer :
DComponents
Mfr. Part # :
BAV199-AQ
Description
DIODE ARRAY GP 75V 215MA SOT23
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAV199-AQ PDF
BAV199-AQ Tech Specifications
Series-
PackageTape & Reel (TR)
Part StatusActive
Diode Configuration1 Pair Series Connection
Diode TypeStandard
Voltage - DC Reverse (Vr) (Max)75 V
Current - Average Rectified (Io) (per Diode)215mA
Voltage - Forward (Vf) (Max) @ If1.25 V @ 150 mA
SpeedStandard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)3 µs
Current - Reverse Leakage @ Vr5 nA @ 75 V
Operating Temperature - Junction-55°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseTO-236-3, SC-59, SOT-23-3
Supplier Device PackageSOT-23-3 (TO-236)
Request Quote Now
Request Quote Now

We can supply BAV199-AQ, use the request quote form to request BAV199-AQ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAV199-AQ. The price and lead time for BAV199-AQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAV199-AQ. We look forward to working with you to establish long-term relations of cooperation.
