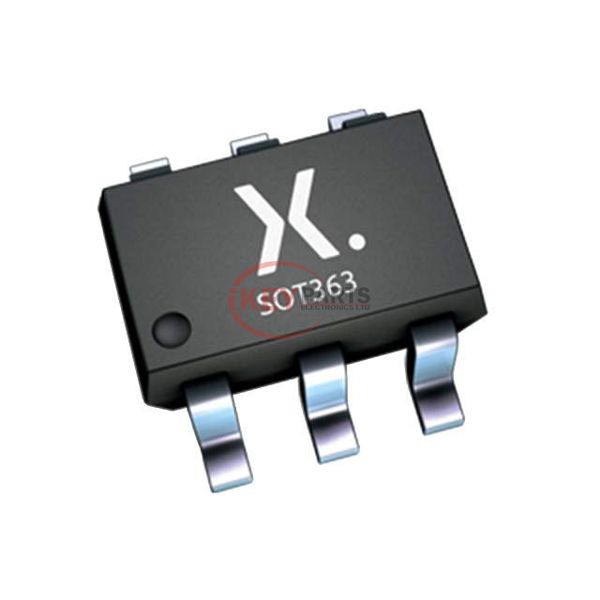

BAT54XYH

Enlarger

Lmages are for reference only See Product Specitications

Nexperia BAT54XYH

Manufacturer :
Nexperia
Mfr. Part # :
BAT54XYH
Description
DIODE ARRAY SCHOTTKY 30V SC-88
Catalog
Diodes - Rectifiers - Arrays
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BAT54XYH PDF
BAT54XYH Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Diode Configuration2 Pair Series Connection
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30 V
Current - Average Rectified (Io) (per Diode)200mA (DC)
Voltage - Forward (Vf) (Max) @ If800 mV @ 100 mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)-
Current - Reverse Leakage @ Vr2 µA @ 25 V
Operating Temperature - Junction125°C (Max)
Mounting TypeSurface Mount
Package / Case6-TSSOP, SC-88, SOT-363
Supplier Device Package6-TSSOP
Request Quote Now
Request Quote Now

We can supply BAT54XYH, use the request quote form to request BAT54XYH pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BAT54XYH. The price and lead time for BAT54XYH depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BAT54XYH. We look forward to working with you to establish long-term relations of cooperation.
