EEE-TC1A561UP

Enlarger

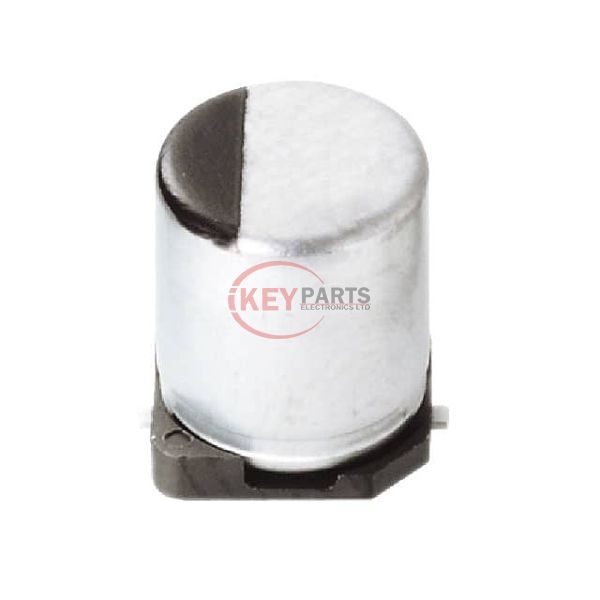

Lmages are for reference only See Product Specitications

Panasonic EEE-TC1A561UP

Manufacturer :
Panasonic
Mfr. Part # :
EEE-TC1A561UP
Description
CAP ALUM 560UF 20% 10V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEE-TC1A561UP PDF
In Stock
752
EEE-TC1A561UP Tech Specifications
SeriesTCU
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Capacitance560 µF
Tolerance±20%
Voltage - Rated10 V
ESR (Equivalent Series Resistance)200mOhm @ 100kHz
Lifetime @ Temp.3000 Hrs @ 125°C
Operating Temperature-40°C ~ 125°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive, High Temperature Reflow
Ripple Current @ Low Frequency266.5 mA @ 120 Hz
Ripple Current @ High Frequency410 mA @ 100 kHz
Impedance-
Lead Spacing-
Size / Dimension0.315" Dia (8.00mm)
Height - Seated (Max)0.413" (10.50mm)
Surface Mount Land Size0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EEE-TC1A561UP, use the request quote form to request EEE-TC1A561UP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEE-TC1A561UP. The price and lead time for EEE-TC1A561UP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEE-TC1A561UP. We look forward to working with you to establish long-term relations of cooperation.
