EEE-HD1C220AR

Enlarger

Lmages are for reference only See Product Specitications

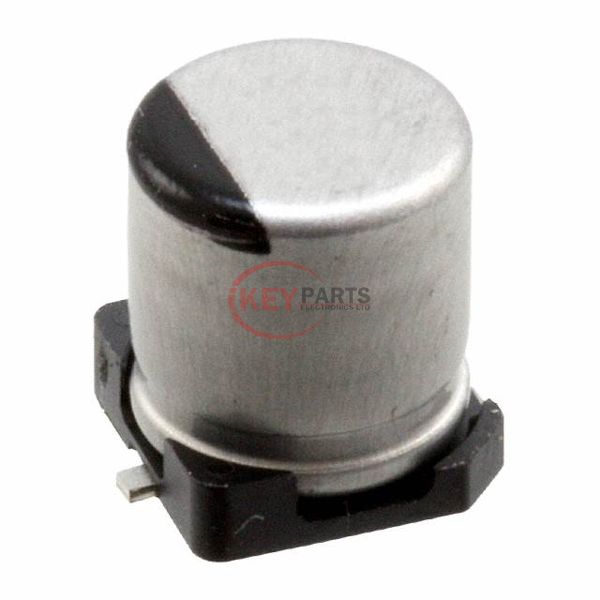

Panasonic EEE-HD1C220AR

Manufacturer :
Panasonic
Mfr. Part # :
EEE-HD1C220AR
Description
CAP ALUM 22UF 20% 16V SMD
Catalog
Aluminum Electrolytic Capacitors
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
EEE-HD1C220AR PDF
In Stock
1356
EEE-HD1C220AR Tech Specifications
SeriesHD
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
Capacitance22 µF
Tolerance±20%
Voltage - Rated16 V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-40°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive, High Temperature Reflow
Ripple Current @ Low Frequency39 mA @ 120 Hz
Ripple Current @ High Frequency66.3 mA @ 10 kHz
Impedance7.2 Ohms
Lead Spacing-
Size / Dimension0.197" Dia (5.00mm)
Height - Seated (Max)0.228" (5.80mm)
Surface Mount Land Size0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
Request Quote Now
Request Quote Now

We can supply EEE-HD1C220AR, use the request quote form to request EEE-HD1C220AR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number EEE-HD1C220AR. The price and lead time for EEE-HD1C220AR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# EEE-HD1C220AR. We look forward to working with you to establish long-term relations of cooperation.
