SQJA70EP-T1_GE3

Enlarger

Lmages are for reference only See Product Specitications

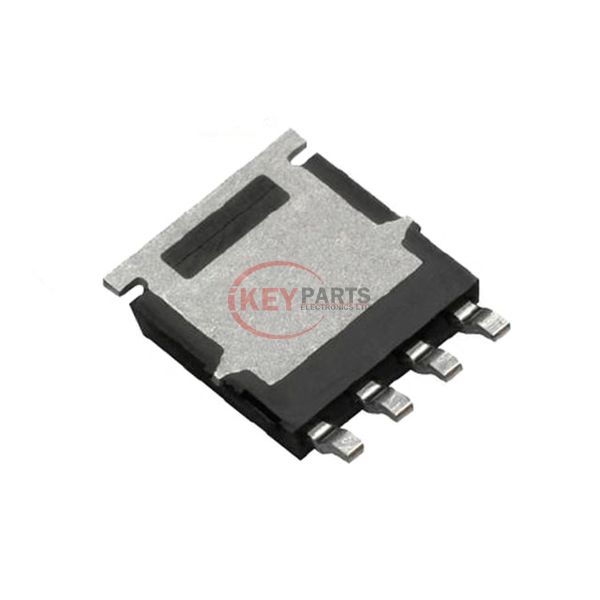

Vishay / Siliconix SQJA70EP-T1_GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SQJA70EP-T1_GE3
Description
MOSFET N-CH 100V 14.7A PPAK SO-8
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SQJA70EP-T1_GE3 PDF
SQJA70EP-T1_GE3 Tech Specifications
SeriesAutomotive, AEC-Q101, TrenchFET®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C14.7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs95mOhm @ 4A, 10V
Vgs(th) (Max) @ Id3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds220 pF @ 25 V
FET Feature-
Power Dissipation (Max)27W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® SO-8
Package / CasePowerPAK® SO-8
Request Quote Now
Request Quote Now

We can supply SQJA70EP-T1_GE3, use the request quote form to request SQJA70EP-T1_GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SQJA70EP-T1_GE3. The price and lead time for SQJA70EP-T1_GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SQJA70EP-T1_GE3. We look forward to working with you to establish long-term relations of cooperation.
