UF3SC120040B7S

Enlarger

Lmages are for reference only See Product Specitications

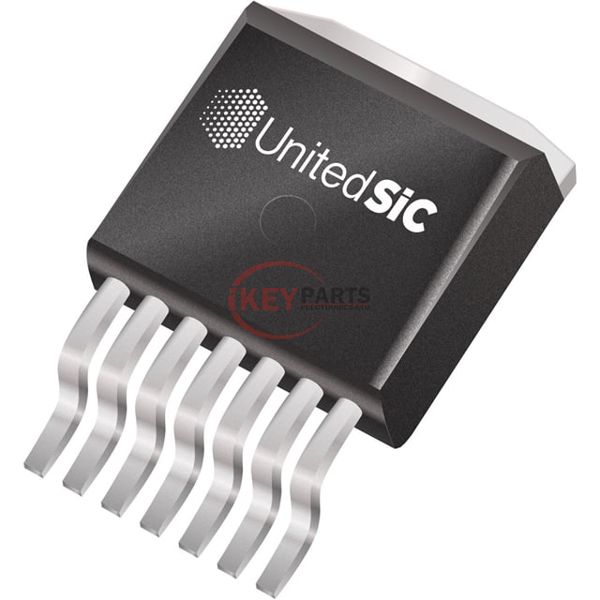

UnitedSiC UF3SC120040B7S

Manufacturer :
UnitedSiC
Mfr. Part # :
UF3SC120040B7S
Description
1200V/40MOHM, SIC, STACKED FAST
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
UF3SC120040B7S PDF
UF3SC120040B7S Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologySiCFET (Cascode SiCJFET)
Drain to Source Voltage (Vdss)1200 V
Current - Continuous Drain (Id) @ 25°C47A (Tc)
Drive Voltage (Max Rds On, Min Rds On)12V
Rds On (Max) @ Id, Vgs45mOhm @ 35A, 12V
Vgs(th) (Max) @ Id6V @ 10mA
Gate Charge (Qg) (Max) @ Vgs43 nC @ 12 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds1500 pF @ 100 V
FET Feature-
Power Dissipation (Max)214W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageD2PAK-7
Package / CaseTO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Request Quote Now
Request Quote Now

We can supply UF3SC120040B7S, use the request quote form to request UF3SC120040B7S pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number UF3SC120040B7S. The price and lead time for UF3SC120040B7S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# UF3SC120040B7S. We look forward to working with you to establish long-term relations of cooperation.
