TPN22006NH,LQ

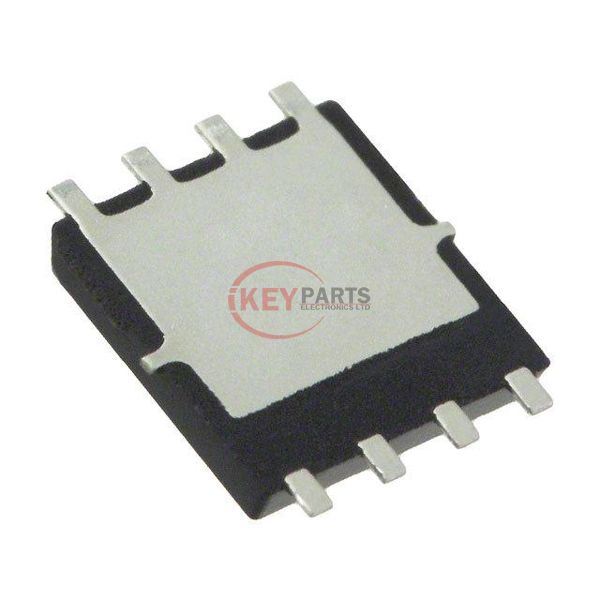

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TPN22006NH,LQ

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TPN22006NH,LQ
Description
MOSFET N-CH 60V 9A 8TSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TPN22006NH,LQ PDF
TPN22006NH,LQ Tech Specifications
SeriesU-MOSVIII-H
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)6.5V, 10V
Rds On (Max) @ Id, Vgs22mOhm @ 4.5A, 10V
Vgs(th) (Max) @ Id4V @ 100µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds710 pF @ 30 V
FET Feature-
Power Dissipation (Max)700mW (Ta), 18W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-TSON Advance (3.3x3.3)
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply TPN22006NH,LQ, use the request quote form to request TPN22006NH,LQ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TPN22006NH,LQ. The price and lead time for TPN22006NH,LQ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TPN22006NH,LQ. We look forward to working with you to establish long-term relations of cooperation.
