G2304

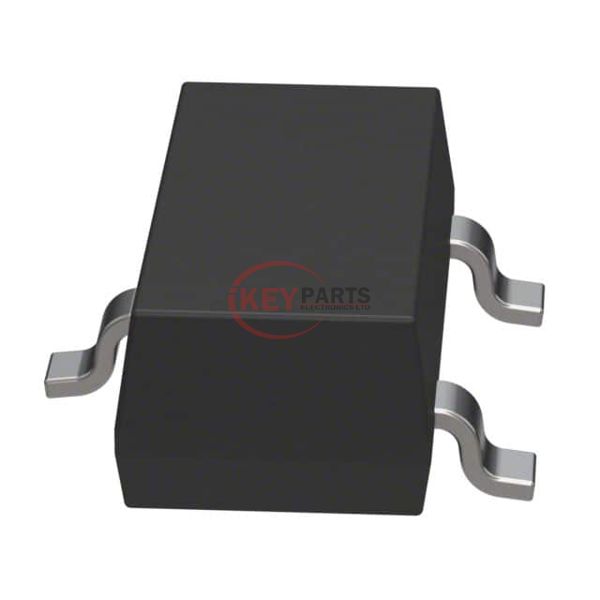

Enlarger

Lmages are for reference only See Product Specitications

G2304

Manufacturer :
Mfr. Part # :
G2304
Description
MOSFET N-CH 30V 3.6A SOT-23
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
G2304 PDF
G2304 Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs58mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs4 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds230 pF @ 15 V
FET FeatureStandard
Power Dissipation (Max)1.7W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-23
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply G2304, use the request quote form to request G2304 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number G2304. The price and lead time for G2304 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# G2304. We look forward to working with you to establish long-term relations of cooperation.
