FDFMA3N109

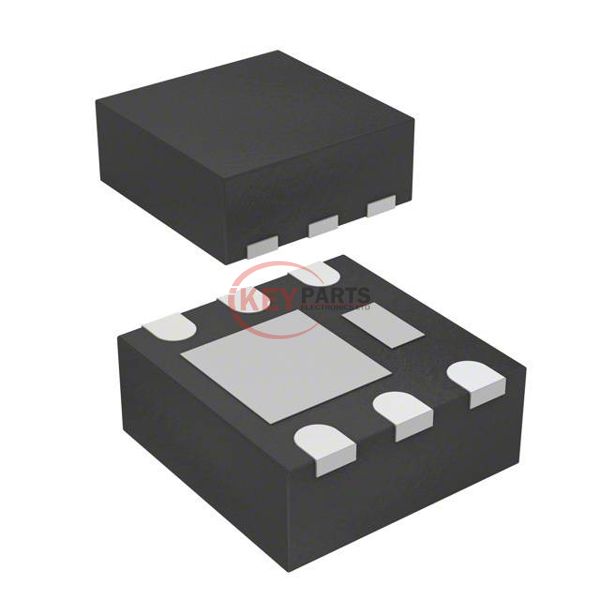

Enlarger

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDFMA3N109

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDFMA3N109
Description
MOSFET N-CH 30V 2.9A 6MICROFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDFMA3N109 PDF
In Stock
66560000
FDFMA3N109 Tech Specifications
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C2.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs123mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs3 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds220 pF @ 15 V
FET FeatureSchottky Diode (Isolated)
Power Dissipation (Max)1.5W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-MicroFET (2x2)
Package / Case6-VDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply FDFMA3N109, use the request quote form to request FDFMA3N109 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDFMA3N109. The price and lead time for FDFMA3N109 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDFMA3N109. We look forward to working with you to establish long-term relations of cooperation.
