IPI22N03S4L15AKSA1

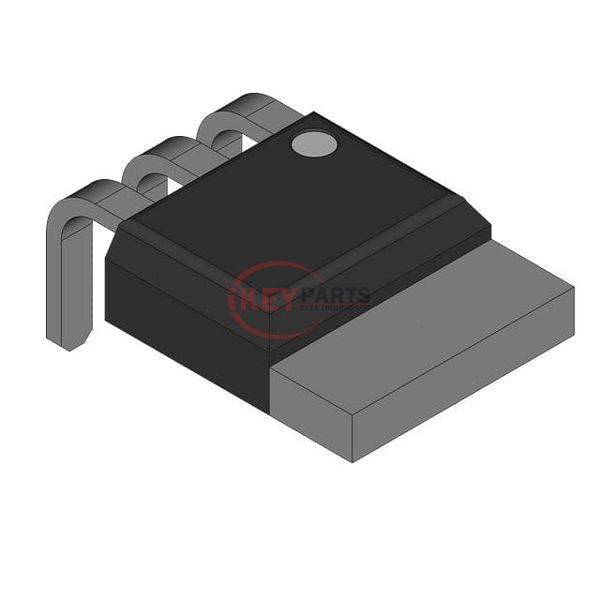

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics IPI22N03S4L15AKSA1

Manufacturer :
Rochester Electronics
Mfr. Part # :
IPI22N03S4L15AKSA1
Description
MOSFET N-CH 30V 22A TO262-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IPI22N03S4L15AKSA1 PDF
IPI22N03S4L15AKSA1 Tech Specifications
SeriesOptiMOS™
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C22A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs14.9mOhm @ 22A, 10V
Vgs(th) (Max) @ Id2.2V @ 10µA
Gate Charge (Qg) (Max) @ Vgs14 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds980 pF @ 25 V
FET Feature-
Power Dissipation (Max)31W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackagePG-TO262-3
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IPI22N03S4L15AKSA1, use the request quote form to request IPI22N03S4L15AKSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPI22N03S4L15AKSA1. The price and lead time for IPI22N03S4L15AKSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPI22N03S4L15AKSA1. We look forward to working with you to establish long-term relations of cooperation.
