CMLDM7120G TR PBFREE

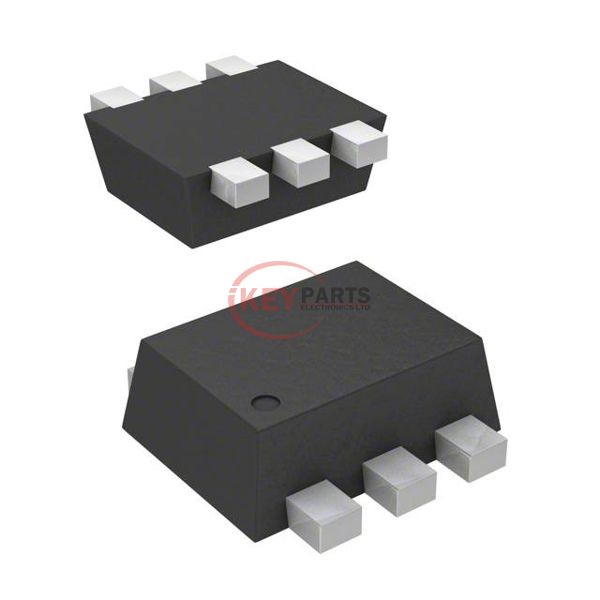

Enlarger

Lmages are for reference only See Product Specitications

Central Semiconductor CMLDM7120G TR PBFREE

Manufacturer :
Central Semiconductor
Mfr. Part # :
CMLDM7120G TR PBFREE
Description
MOSFET N-CH 20V 1A SOT563
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CMLDM7120G TR PBFREE PDF
CMLDM7120G TR PBFREE Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4V
Rds On (Max) @ Id, Vgs100mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs2.4 nC @ 4.5 V
Vgs (Max)8V
Input Capacitance (Ciss) (Max) @ Vds220 pF @ 10 V
FET Feature-
Power Dissipation (Max)150mW (Ta)
Operating Temperature-65°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-563
Package / CaseSOT-563, SOT-666
Request Quote Now
Request Quote Now

We can supply CMLDM7120G TR PBFREE, use the request quote form to request CMLDM7120G TR PBFREE pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CMLDM7120G TR PBFREE. The price and lead time for CMLDM7120G TR PBFREE depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CMLDM7120G TR PBFREE. We look forward to working with you to establish long-term relations of cooperation.
