IRL520LPBF

Enlarger

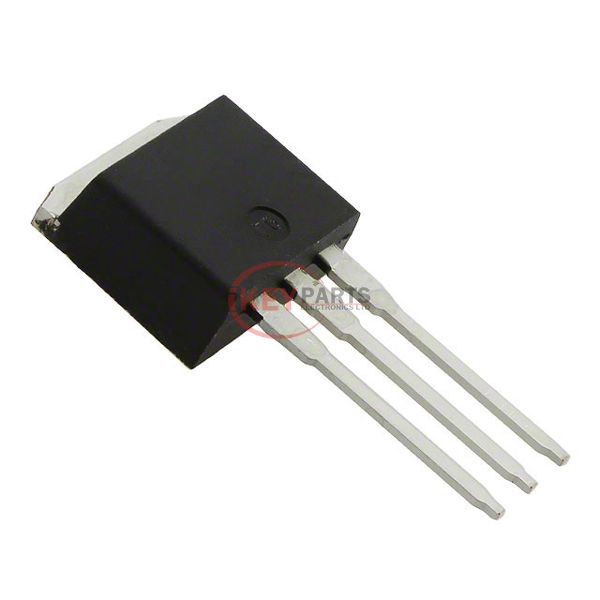

Lmages are for reference only See Product Specitications

Vishay / Siliconix IRL520LPBF

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
IRL520LPBF
Description
MOSFET N-CH 100V 9.2A TO262-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IRL520LPBF PDF
IRL520LPBF Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)100 V
Current - Continuous Drain (Id) @ 25°C9.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4V, 5V
Rds On (Max) @ Id, Vgs270mOhm @ 5.5A, 5V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12 nC @ 5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds490 pF @ 25 V
FET Feature-
Power Dissipation (Max)60W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-262-3
Package / CaseTO-262-3 Long Leads, I²Pak, TO-262AA
Request Quote Now
Request Quote Now

We can supply IRL520LPBF, use the request quote form to request IRL520LPBF pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IRL520LPBF. The price and lead time for IRL520LPBF depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IRL520LPBF. We look forward to working with you to establish long-term relations of cooperation.
