IXFH76N15T2

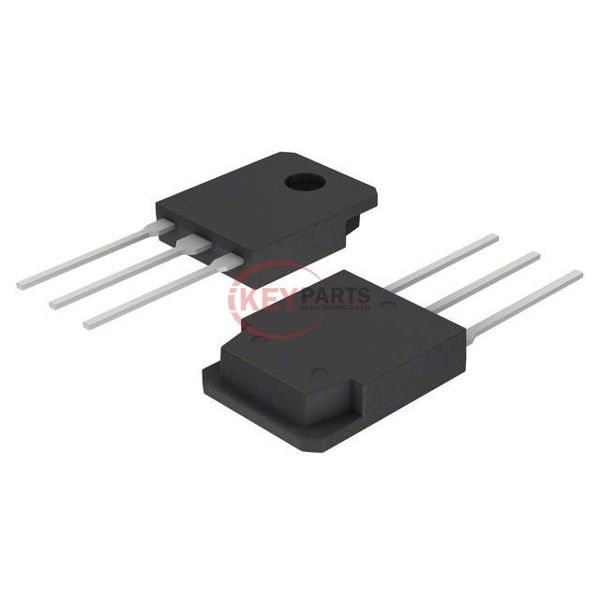

Enlarger

Lmages are for reference only See Product Specitications

Wickmann / Littelfuse IXFH76N15T2

Manufacturer :
Wickmann / Littelfuse
Mfr. Part # :
IXFH76N15T2
Description
MOSFET N-CH 150V 76A TO247
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
IXFH76N15T2 PDF
IXFH76N15T2 Tech Specifications
SeriesHiPerFET™, TrenchT2™
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)150 V
Current - Continuous Drain (Id) @ 25°C76A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs22mOhm @ 38A, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs97 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds5800 pF @ 25 V
FET Feature-
Power Dissipation (Max)350W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply IXFH76N15T2, use the request quote form to request IXFH76N15T2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IXFH76N15T2. The price and lead time for IXFH76N15T2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IXFH76N15T2. We look forward to working with you to establish long-term relations of cooperation.
