RCJ700N20TL

Enlarger

Lmages are for reference only See Product Specitications

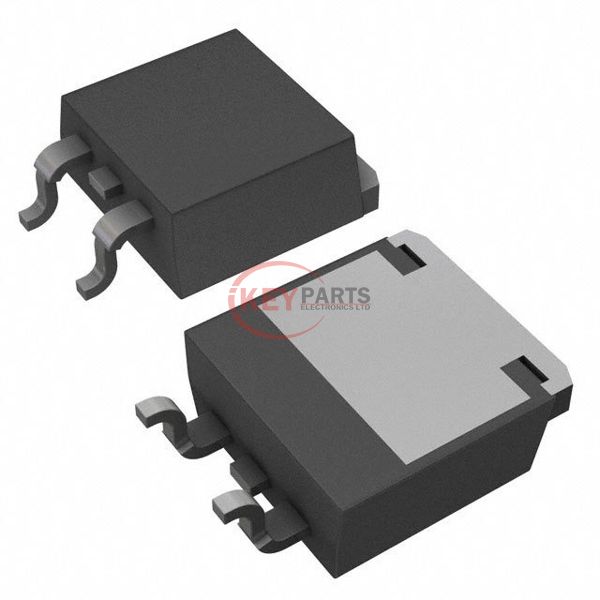

ROHM Semiconductor RCJ700N20TL

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RCJ700N20TL
Description
MOSFET N-CH 200V 70A LPTS
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RCJ700N20TL PDF
RCJ700N20TL Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)200 V
Current - Continuous Drain (Id) @ 25°C70A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs42.7mOhm @ 35A, 10V
Vgs(th) (Max) @ Id5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs125 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds6900 pF @ 25 V
FET Feature-
Power Dissipation (Max)1.56W (Ta), 40W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLPTS
Package / CaseTO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Request Quote Now
Request Quote Now

We can supply RCJ700N20TL, use the request quote form to request RCJ700N20TL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RCJ700N20TL. The price and lead time for RCJ700N20TL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RCJ700N20TL. We look forward to working with you to establish long-term relations of cooperation.
