FDZ661PZ

Enlarger

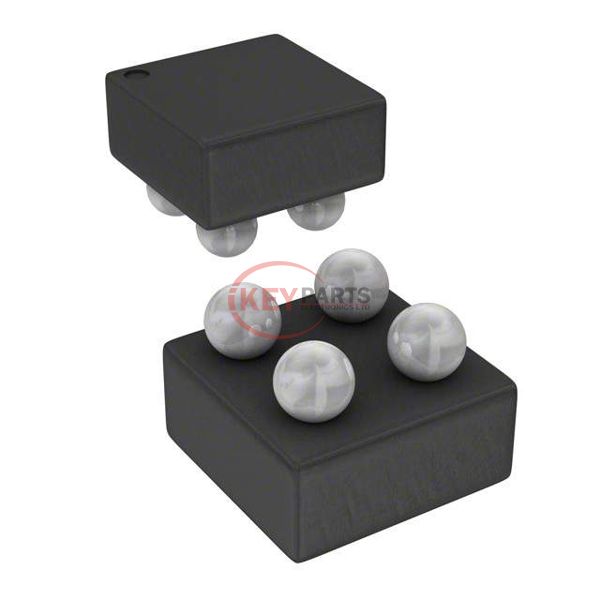

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor FDZ661PZ

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
FDZ661PZ
Description
MOSFET P-CH 20V 2.6A 4WLCSP
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
FDZ661PZ PDF
FDZ661PZ Tech Specifications
SeriesPowerTrench®
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs140mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id1.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs8.8 nC @ 4.5 V
Vgs (Max)±8V
Input Capacitance (Ciss) (Max) @ Vds555 pF @ 10 V
FET Feature-
Power Dissipation (Max)1.3W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package4-WLCSP (0.8x0.8)
Package / Case4-XFBGA, WLCSP
Request Quote Now
Request Quote Now

We can supply FDZ661PZ, use the request quote form to request FDZ661PZ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDZ661PZ. The price and lead time for FDZ661PZ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDZ661PZ. We look forward to working with you to establish long-term relations of cooperation.
