PXN010-30QLJ

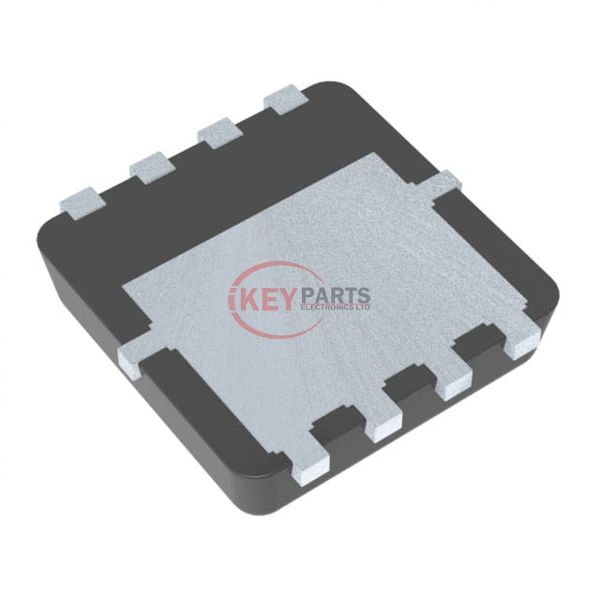

Enlarger

Lmages are for reference only See Product Specitications

Nexperia PXN010-30QLJ

Manufacturer :
Nexperia
Mfr. Part # :
PXN010-30QLJ
Description
PXN010-30QL/SOT8002/MLPAK33
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PXN010-30QLJ PDF
PXN010-30QLJ Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C10.3A (Ta), 28A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs10.2mOhm @ 10.3A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs12.3 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds580 pF @ 15 V
FET Feature-
Power Dissipation (Max)1.7W (Ta), 12.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageMLPAK33
Package / Case8-PowerVDFN
Request Quote Now
Request Quote Now

We can supply PXN010-30QLJ, use the request quote form to request PXN010-30QLJ pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PXN010-30QLJ. The price and lead time for PXN010-30QLJ depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PXN010-30QLJ. We look forward to working with you to establish long-term relations of cooperation.
