SIAA00DJ-T1-GE3

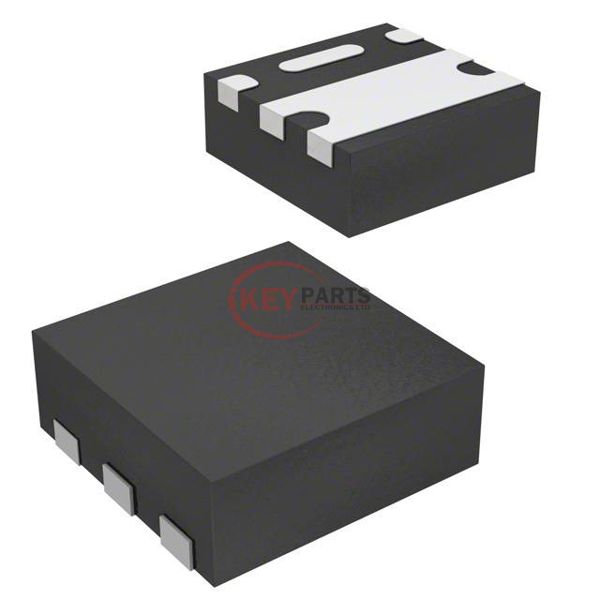

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SIAA00DJ-T1-GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SIAA00DJ-T1-GE3
Description
MOSFET N-CH 25V 20.1A/40A PPAK
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SIAA00DJ-T1-GE3 PDF
In Stock
863
SIAA00DJ-T1-GE3 Tech Specifications
SeriesTrenchFET® Gen IV
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C20.1A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs5.6mOhm @ 15A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs24 nC @ 10 V
Vgs (Max)+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds1090 pF @ 12.5 V
FET Feature-
Power Dissipation (Max)3.5W (Ta), 19.2W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® SC-70-6 Single
Package / CasePowerPAK® SC-70-6
Request Quote Now
Request Quote Now

We can supply SIAA00DJ-T1-GE3, use the request quote form to request SIAA00DJ-T1-GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SIAA00DJ-T1-GE3. The price and lead time for SIAA00DJ-T1-GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SIAA00DJ-T1-GE3. We look forward to working with you to establish long-term relations of cooperation.
