ECH8308-TL-H

Enlarger

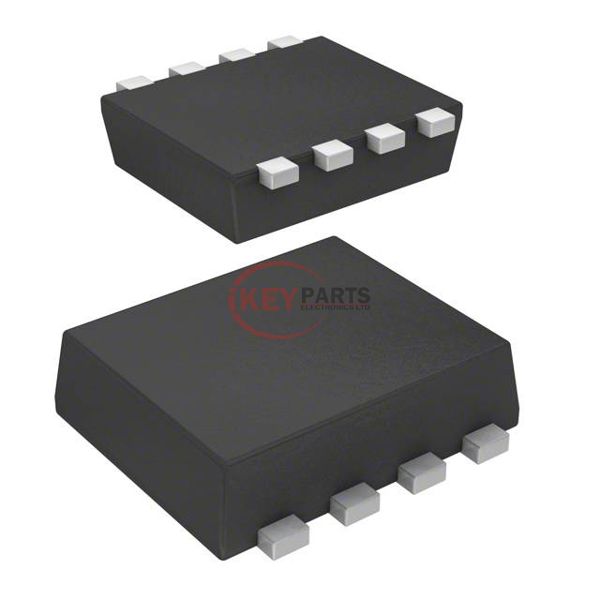

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor ECH8308-TL-H

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
ECH8308-TL-H
Description
MOSFET P-CH 12V 10A 8ECH
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
ECH8308-TL-H PDF
In Stock
2216
ECH8308-TL-H Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C10A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs12.5mOhm @ 5A, 4.5V
Vgs(th) (Max) @ Id-
Gate Charge (Qg) (Max) @ Vgs26 nC @ 4.5 V
Vgs (Max)±10V
Input Capacitance (Ciss) (Max) @ Vds2300 pF @ 6 V
FET Feature-
Power Dissipation (Max)1.6W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package8-ECH
Package / Case8-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply ECH8308-TL-H, use the request quote form to request ECH8308-TL-H pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ECH8308-TL-H. The price and lead time for ECH8308-TL-H depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ECH8308-TL-H. We look forward to working with you to establish long-term relations of cooperation.
