PMPB20XNEAX

Enlarger

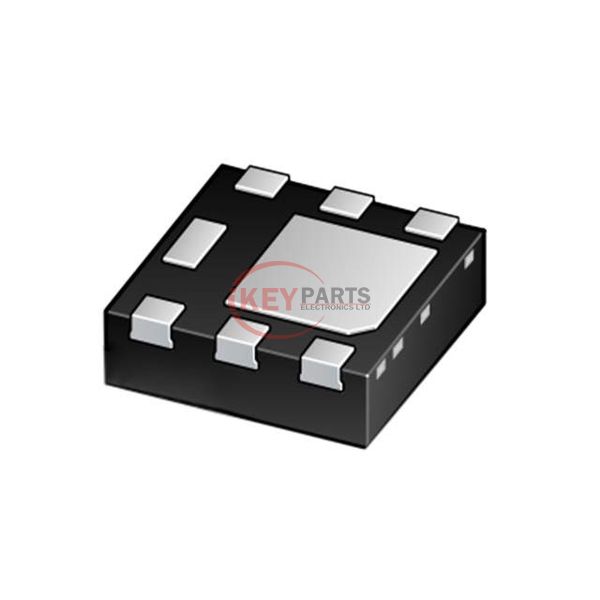

Lmages are for reference only See Product Specitications

Nexperia PMPB20XNEAX

Manufacturer :
Nexperia
Mfr. Part # :
PMPB20XNEAX
Description
MOSFET N-CH 20V 7.5A DFN2020MD-6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMPB20XNEAX PDF
PMPB20XNEAX Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C7.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs20mOhm @ 7.5A, 4.5V
Vgs(th) (Max) @ Id1.25V @ 250µA
Gate Charge (Qg) (Max) @ Vgs15 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds930 pF @ 10 V
FET Feature-
Power Dissipation (Max)460mW (Ta), 12.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN2020MD-6
Package / Case6-UDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply PMPB20XNEAX, use the request quote form to request PMPB20XNEAX pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMPB20XNEAX. The price and lead time for PMPB20XNEAX depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMPB20XNEAX. We look forward to working with you to establish long-term relations of cooperation.
