SISH536DN-T1-GE3

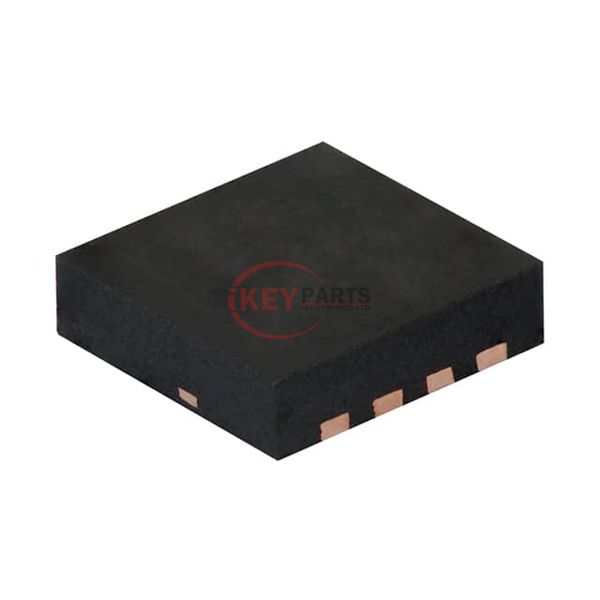

Enlarger

Lmages are for reference only See Product Specitications

Vishay / Siliconix SISH536DN-T1-GE3

Manufacturer :
Vishay / Siliconix
Mfr. Part # :
SISH536DN-T1-GE3
Description
N-CHANNEL 30 V (D-S) MOSFET POWE
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
SISH536DN-T1-GE3 PDF
In Stock
586
SISH536DN-T1-GE3 Tech Specifications
SeriesTrenchFET® Gen V
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C24.7A (Ta), 67.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs3.25mOhm @ 10A, 10V
Vgs(th) (Max) @ Id2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs25 nC @ 10 V
Vgs (Max)+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds1150 pF @ 15 V
FET Feature-
Power Dissipation (Max)3.57W (Ta), 26.5W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePowerPAK® 1212-8SH
Package / CasePowerPAK® 1212-8SH
Request Quote Now
Request Quote Now

We can supply SISH536DN-T1-GE3, use the request quote form to request SISH536DN-T1-GE3 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SISH536DN-T1-GE3. The price and lead time for SISH536DN-T1-GE3 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SISH536DN-T1-GE3. We look forward to working with you to establish long-term relations of cooperation.
