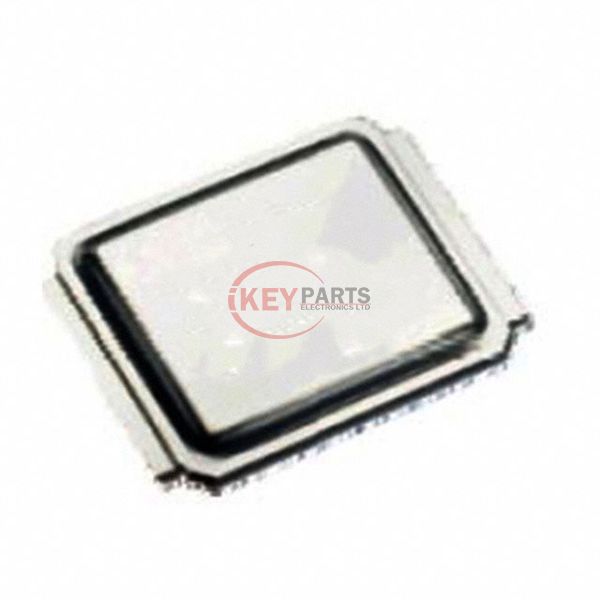

AUIRF7736M2TR

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics AUIRF7736M2TR

Manufacturer :
Rochester Electronics
Mfr. Part # :
AUIRF7736M2TR
Description
MOSFET N-CH 40V 22A/108A DIRECT
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
AUIRF7736M2TR PDF
AUIRF7736M2TR Tech Specifications
SeriesHEXFET®
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C22A (Ta), 108A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs3mOhm @ 65A, 10V
Vgs(th) (Max) @ Id4V @ 150µA
Gate Charge (Qg) (Max) @ Vgs108 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds4.267 pF @ 25 V
FET Feature-
Power Dissipation (Max)2.5W (Ta), 63W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDIRECTFET™ M4
Package / CaseDirectFET™ Isometric M4
Request Quote Now
Request Quote Now

We can supply AUIRF7736M2TR, use the request quote form to request AUIRF7736M2TR pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AUIRF7736M2TR. The price and lead time for AUIRF7736M2TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AUIRF7736M2TR. We look forward to working with you to establish long-term relations of cooperation.
