TSM1NB60CW RPG

Enlarger

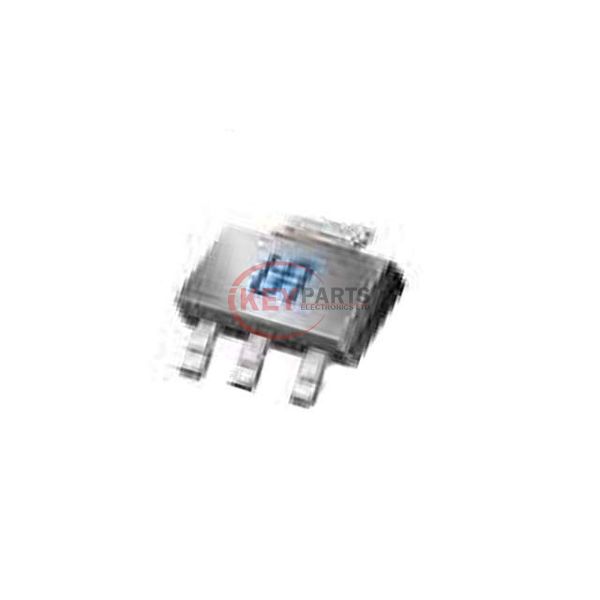

Lmages are for reference only See Product Specitications

TSC (Taiwan Semiconductor) TSM1NB60CW RPG

Manufacturer :
TSC (Taiwan Semiconductor)
Mfr. Part # :
TSM1NB60CW RPG
Description
MOSFET N-CHANNEL 600V 1A SOT223
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TSM1NB60CW RPG PDF
TSM1NB60CW RPG Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C1A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs10Ohm @ 500mA, 10V
Vgs(th) (Max) @ Id4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs6.1 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds138 pF @ 25 V
FET Feature-
Power Dissipation (Max)39W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSOT-223
Package / CaseTO-261-4, TO-261AA
Request Quote Now
Request Quote Now

We can supply TSM1NB60CW RPG, use the request quote form to request TSM1NB60CW RPG pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TSM1NB60CW RPG. The price and lead time for TSM1NB60CW RPG depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TSM1NB60CW RPG. We look forward to working with you to establish long-term relations of cooperation.
