PSMN1R9-25YLC,115

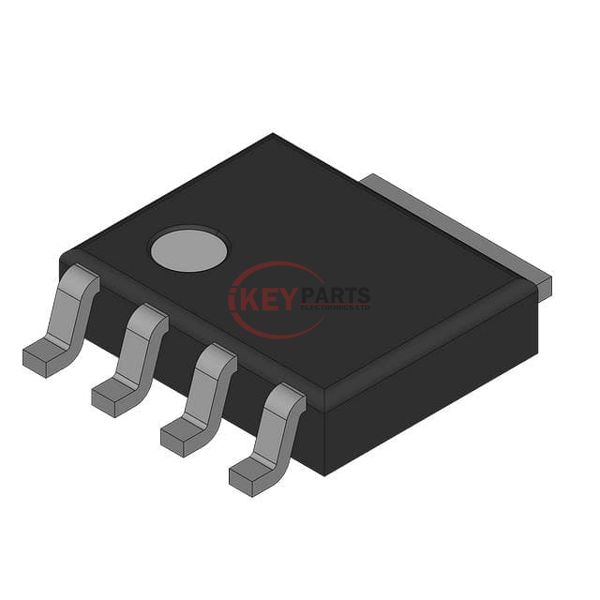

Enlarger

Lmages are for reference only See Product Specitications

Rochester Electronics PSMN1R9-25YLC,115

Manufacturer :
Rochester Electronics
Mfr. Part # :
PSMN1R9-25YLC,115
Description
MOSFET N-CH 25V 100A LFPAK56
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PSMN1R9-25YLC,115 PDF
In Stock
7336
PSMN1R9-25YLC,115 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs2.05mOhm @ 25A, 10V
Vgs(th) (Max) @ Id1.95V @ 1mA
Gate Charge (Qg) (Max) @ Vgs57 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3.504 pF @ 12 V
FET Feature-
Power Dissipation (Max)141W (Tc)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageLFPAK56, Power-SO8
Package / CaseSC-100, SOT-669
Request Quote Now
Request Quote Now

We can supply PSMN1R9-25YLC,115, use the request quote form to request PSMN1R9-25YLC,115 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PSMN1R9-25YLC,115. The price and lead time for PSMN1R9-25YLC,115 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PSMN1R9-25YLC,115. We look forward to working with you to establish long-term relations of cooperation.
