MCH3484-TL-H

Enlarger

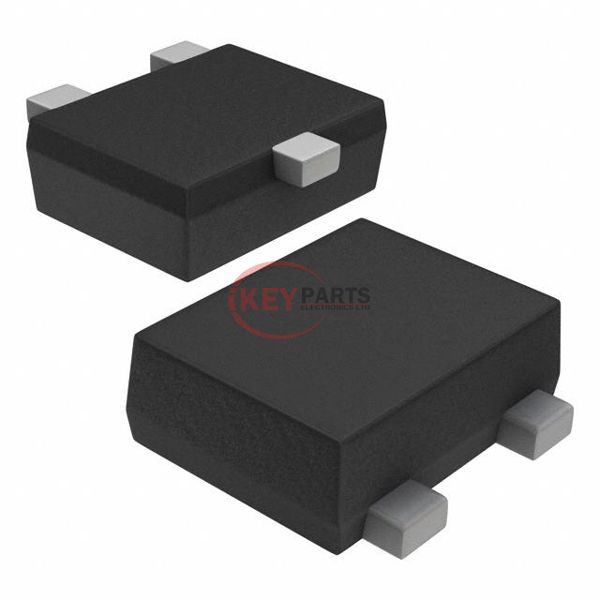

Lmages are for reference only See Product Specitications

Sanyo Semiconductor/ON Semiconductor MCH3484-TL-H

Manufacturer :
Sanyo Semiconductor/ON Semiconductor
Mfr. Part # :
MCH3484-TL-H
Description
MOSFET N-CH 20V 4.5A SC70
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MCH3484-TL-H PDF
In Stock
359
MCH3484-TL-H Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusNot For New Designs
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C4.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)0.9V, 2.5V
Rds On (Max) @ Id, Vgs40mOhm @ 2A, 2.5V
Vgs(th) (Max) @ Id800mV @ 1mA
Gate Charge (Qg) (Max) @ Vgs11 nC @ 2.5 V
Vgs (Max)±5V
Input Capacitance (Ciss) (Max) @ Vds630 pF @ 10 V
FET Feature-
Power Dissipation (Max)1W (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageSC-70FL/MCPH3
Package / Case3-SMD, Flat Lead
Request Quote Now
Request Quote Now

We can supply MCH3484-TL-H, use the request quote form to request MCH3484-TL-H pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MCH3484-TL-H. The price and lead time for MCH3484-TL-H depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MCH3484-TL-H. We look forward to working with you to establish long-term relations of cooperation.
