BSZ009NE2LS5ATMA1

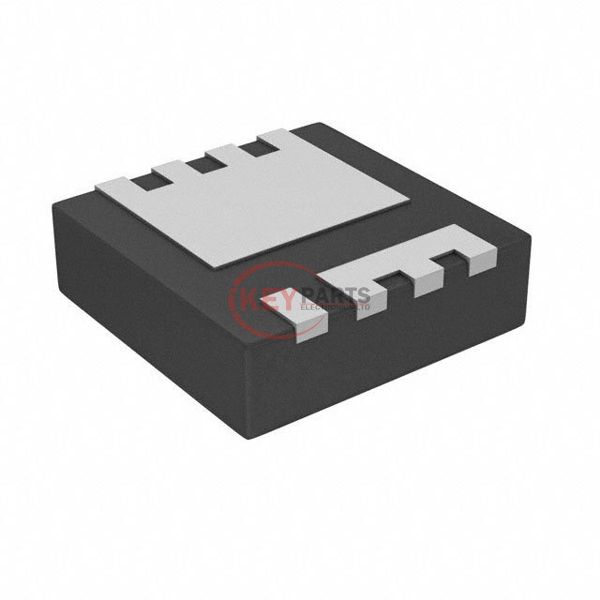

Enlarger

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSZ009NE2LS5ATMA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSZ009NE2LS5ATMA1
Description
MOSFET N-CH 25V 39A/40A TSDSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSZ009NE2LS5ATMA1 PDF
In Stock
939
BSZ009NE2LS5ATMA1 Tech Specifications
SeriesOptiMOS™ 5
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)25 V
Current - Continuous Drain (Id) @ 25°C39A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs900mOhm @ 20A, 10V
Vgs(th) (Max) @ Id2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs124 nC @ 10 V
Vgs (Max)±16V
Input Capacitance (Ciss) (Max) @ Vds5500 pF @ 12 V
FET Feature-
Power Dissipation (Max)2.1W (Ta), 69W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-TSDSON-8-FL
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply BSZ009NE2LS5ATMA1, use the request quote form to request BSZ009NE2LS5ATMA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSZ009NE2LS5ATMA1. The price and lead time for BSZ009NE2LS5ATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSZ009NE2LS5ATMA1. We look forward to working with you to establish long-term relations of cooperation.
