NTE2394

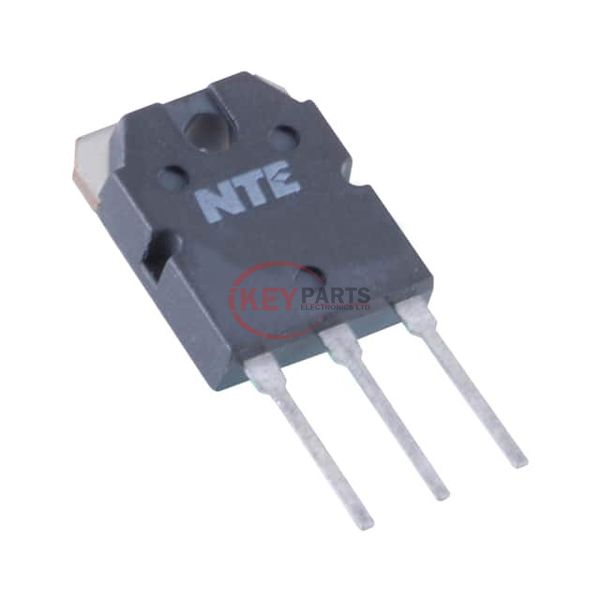

Enlarger

Lmages are for reference only See Product Specitications

NTE Electronics, Inc. NTE2394

Manufacturer :
NTE Electronics, Inc.
Mfr. Part # :
NTE2394
Description
MOSFET N-CHANNEL 500V 14A TO3P
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NTE2394 PDF
In Stock
105
NTE2394 Tech Specifications
Series-
PackageBag
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)500 V
Current - Continuous Drain (Id) @ 25°C14A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs400mOhm @ 7.9A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs120 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3000 pF @ 25 V
FET Feature-
Power Dissipation (Max)180W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-3P
Package / CaseTO-3P-3, SC-65-3
Request Quote Now
Request Quote Now

We can supply NTE2394, use the request quote form to request NTE2394 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NTE2394. The price and lead time for NTE2394 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NTE2394. We look forward to working with you to establish long-term relations of cooperation.
