PMV30XN,215

Enlarger

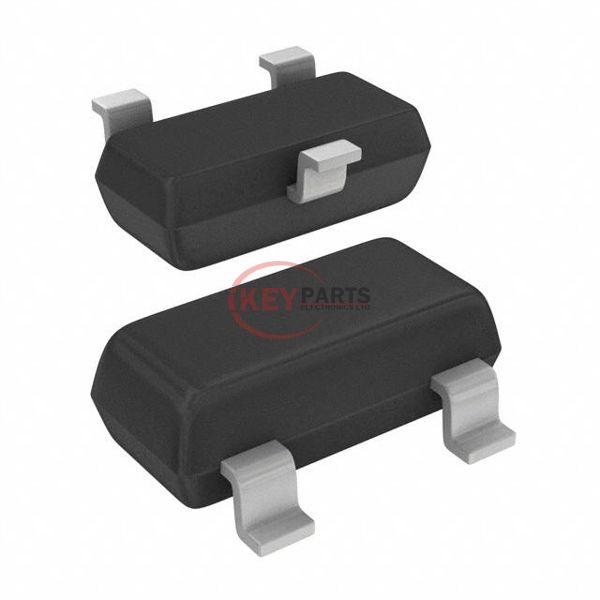

Lmages are for reference only See Product Specitications

Rochester Electronics PMV30XN,215

Manufacturer :
Rochester Electronics
Mfr. Part # :
PMV30XN,215
Description
MOSFET N-CH 20V 3.2A TO236AB
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
PMV30XN,215 PDF
In Stock
236528
PMV30XN,215 Tech Specifications
Series-
PackageBulk
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C3.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs35mOhm @ 3.2A, 4.5V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs7.4 nC @ 4.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds420 pF @ 15 V
FET Feature-
Power Dissipation (Max)380mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-236AB (SOT23)
Package / CaseTO-236-3, SC-59, SOT-23-3
Request Quote Now
Request Quote Now

We can supply PMV30XN,215, use the request quote form to request PMV30XN,215 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PMV30XN,215. The price and lead time for PMV30XN,215 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PMV30XN,215. We look forward to working with you to establish long-term relations of cooperation.
