CSD23280F3T

Enlarger

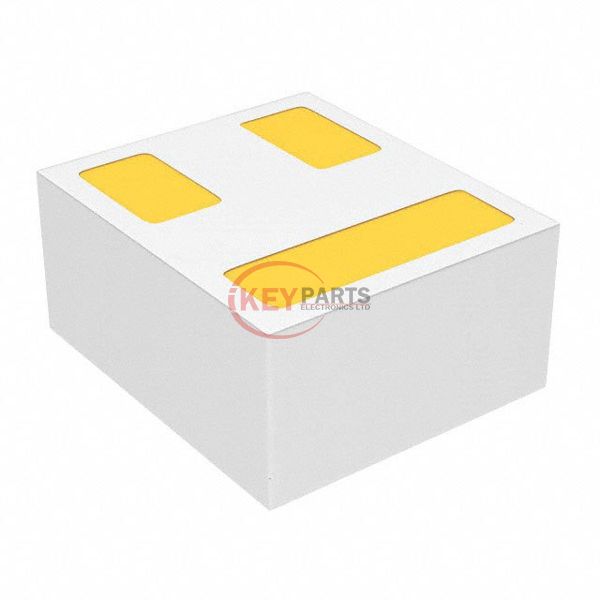

Lmages are for reference only See Product Specitications

Texas Instruments CSD23280F3T

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD23280F3T
Description
MOSFET P-CH 12V 1.8A 3PICOSTAR
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD23280F3T PDF
In Stock
118
CSD23280F3T Tech Specifications
SeriesFemtoFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.5V, 4.5V
Rds On (Max) @ Id, Vgs116mOhm @ 400mA, 4.5V
Vgs(th) (Max) @ Id0.95V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.23 nC @ 4.5 V
Vgs (Max)-6V
Input Capacitance (Ciss) (Max) @ Vds234 pF @ 6 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-PICOSTAR
Package / Case3-SMD, No Lead
Request Quote Now
Request Quote Now

We can supply CSD23280F3T, use the request quote form to request CSD23280F3T pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD23280F3T. The price and lead time for CSD23280F3T depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD23280F3T. We look forward to working with you to establish long-term relations of cooperation.
