NX138BKMYL

Enlarger

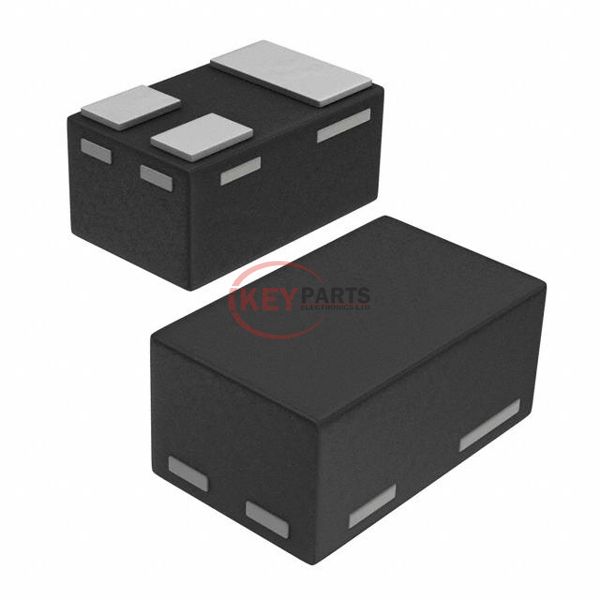

Lmages are for reference only See Product Specitications

Nexperia NX138BKMYL

Manufacturer :
Nexperia
Mfr. Part # :
NX138BKMYL
Description
MOSFET N-CH 60V 380MA DFN1006-3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
NX138BKMYL PDF
NX138BKMYL Tech Specifications
SeriesTrenchMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C380mA (Ta)
Drive Voltage (Max Rds On, Min Rds On)-
Rds On (Max) @ Id, Vgs2.3Ohm @ 380mA, 10V
Vgs(th) (Max) @ Id1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs0.7 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds20 pF @ 30 V
FET Feature-
Power Dissipation (Max)380mW (Ta), 2.8W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN1006-3
Package / CaseSC-101, SOT-883
Request Quote Now
Request Quote Now

We can supply NX138BKMYL, use the request quote form to request NX138BKMYL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NX138BKMYL. The price and lead time for NX138BKMYL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NX138BKMYL. We look forward to working with you to establish long-term relations of cooperation.
