RQ5C020TPTL

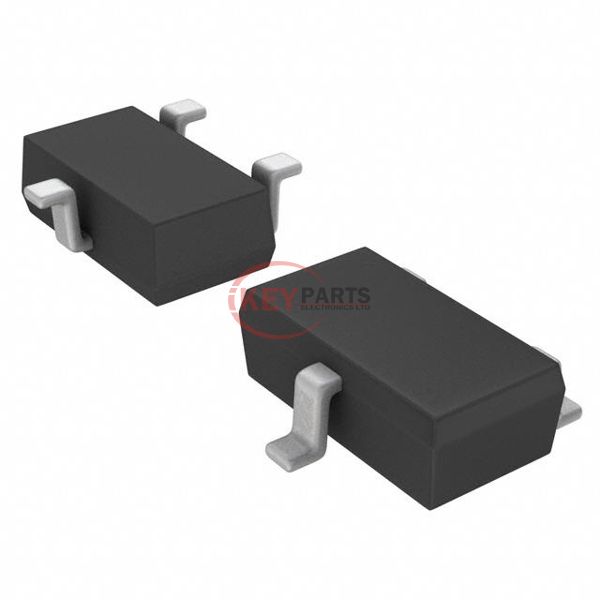

Enlarger

Lmages are for reference only See Product Specitications

ROHM Semiconductor RQ5C020TPTL

Manufacturer :
ROHM Semiconductor
Mfr. Part # :
RQ5C020TPTL
Description
MOSFET P-CH 20V 2A TSMT3
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
RQ5C020TPTL PDF
RQ5C020TPTL Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)20 V
Current - Continuous Drain (Id) @ 25°C2A (Ta)
Drive Voltage (Max Rds On, Min Rds On)2.5V, 4.5V
Rds On (Max) @ Id, Vgs135mOhm @ 2A, 4.5V
Vgs(th) (Max) @ Id2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs4.9 nC @ 2.5 V
Vgs (Max)±12V
Input Capacitance (Ciss) (Max) @ Vds430 pF @ 10 V
FET Feature-
Power Dissipation (Max)700mW (Ta)
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTSMT3
Package / CaseSC-96
Request Quote Now
Request Quote Now

We can supply RQ5C020TPTL, use the request quote form to request RQ5C020TPTL pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RQ5C020TPTL. The price and lead time for RQ5C020TPTL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RQ5C020TPTL. We look forward to working with you to establish long-term relations of cooperation.
