2N6760

Enlarger

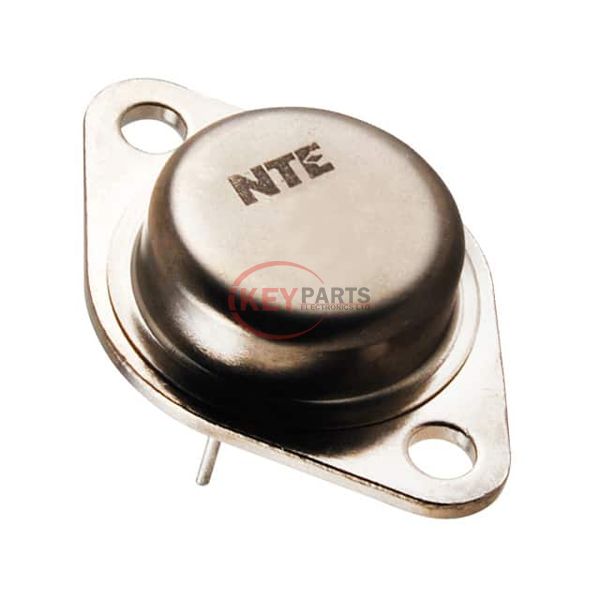

Lmages are for reference only See Product Specitications

Rochester Electronics 2N6760

Manufacturer :
Rochester Electronics
Mfr. Part # :
2N6760
Description
N-CHANNEL POWER MOSFET
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
2N6760 PDF
2N6760 Tech Specifications
Series-
PackageBulk
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)400 V
Current - Continuous Drain (Id) @ 25°C5.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs1.22Ohm @ 5.5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs39 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds-
FET Feature-
Power Dissipation (Max)4W (Ta), 75W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-204AA
Package / CaseTO-204AA, TO-3
Request Quote Now
Request Quote Now

We can supply 2N6760, use the request quote form to request 2N6760 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 2N6760. The price and lead time for 2N6760 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 2N6760. We look forward to working with you to establish long-term relations of cooperation.
