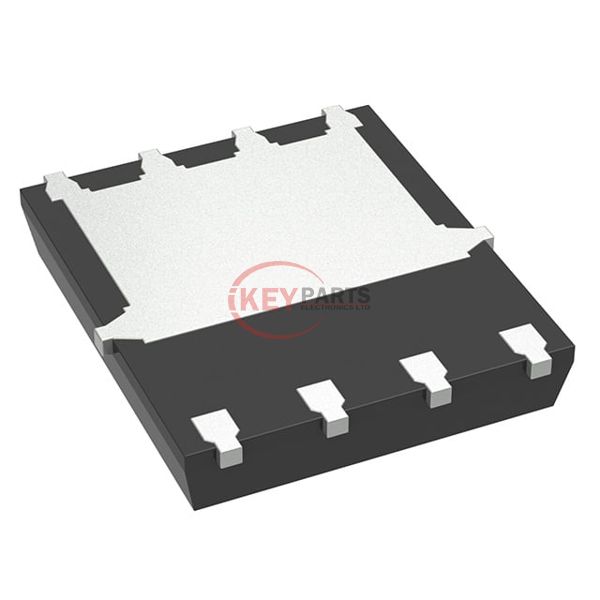

MCAC80N06Y-TP

Enlarger

Lmages are for reference only See Product Specitications

Micro Commercial Components (MCC) MCAC80N06Y-TP

Manufacturer :
Micro Commercial Components (MCC)
Mfr. Part # :
MCAC80N06Y-TP
Description
MOSFET N-CH 60V 80A DFN5060
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MCAC80N06Y-TP PDF
MCAC80N06Y-TP Tech Specifications
Series-
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60 V
Current - Continuous Drain (Id) @ 25°C80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs4.2mOhm @ 40A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs67 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds3980 pF @ 30 V
FET Feature-
Power Dissipation (Max)85W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageDFN5060
Package / Case8-PowerTDFN
Request Quote Now
Request Quote Now

We can supply MCAC80N06Y-TP, use the request quote form to request MCAC80N06Y-TP pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MCAC80N06Y-TP. The price and lead time for MCAC80N06Y-TP depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MCAC80N06Y-TP. We look forward to working with you to establish long-term relations of cooperation.
