CSD13381F4

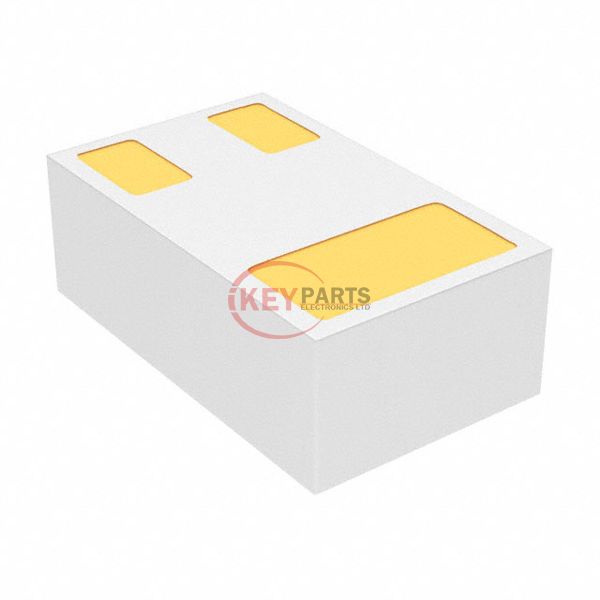

Enlarger

Lmages are for reference only See Product Specitications

Texas Instruments CSD13381F4

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD13381F4
Description
MOSFET N-CH 12V 2.1A 3PICOSTAR
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD13381F4 PDF
In Stock
415
CSD13381F4 Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)12 V
Current - Continuous Drain (Id) @ 25°C2.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)1.8V, 4.5V
Rds On (Max) @ Id, Vgs180mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs1.4 nC @ 4.5 V
Vgs (Max)8V
Input Capacitance (Ciss) (Max) @ Vds200 pF @ 6 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package3-PICOSTAR
Package / Case3-XFDFN
Request Quote Now
Request Quote Now

We can supply CSD13381F4, use the request quote form to request CSD13381F4 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD13381F4. The price and lead time for CSD13381F4 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD13381F4. We look forward to working with you to establish long-term relations of cooperation.
