TK25N60X,S1F

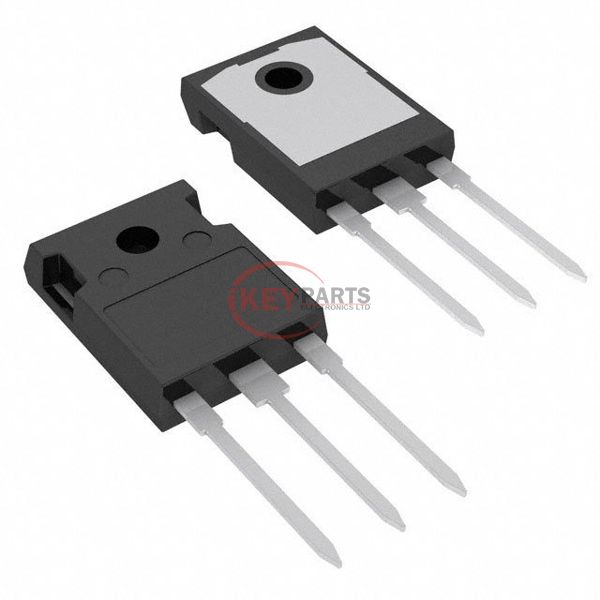

Enlarger

Lmages are for reference only See Product Specitications

Toshiba Electronic Devices and Storage Corporation TK25N60X,S1F

Manufacturer :
Toshiba Electronic Devices and Storage Corporation
Mfr. Part # :
TK25N60X,S1F
Description
MOSFET N-CH 600V 25A TO247
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
TK25N60X,S1F PDF
In Stock
102
TK25N60X,S1F Tech Specifications
SeriesDTMOSIV-H
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C25A (Ta)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs125mOhm @ 7.5A, 10V
Vgs(th) (Max) @ Id3.5V @ 1.2mA
Gate Charge (Qg) (Max) @ Vgs40 nC @ 10 V
Vgs (Max)±30V
Input Capacitance (Ciss) (Max) @ Vds2400 pF @ 300 V
FET Feature-
Power Dissipation (Max)180W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply TK25N60X,S1F, use the request quote form to request TK25N60X,S1F pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TK25N60X,S1F. The price and lead time for TK25N60X,S1F depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TK25N60X,S1F. We look forward to working with you to establish long-term relations of cooperation.
