BSD314SPEH6327XTSA1

Enlarger

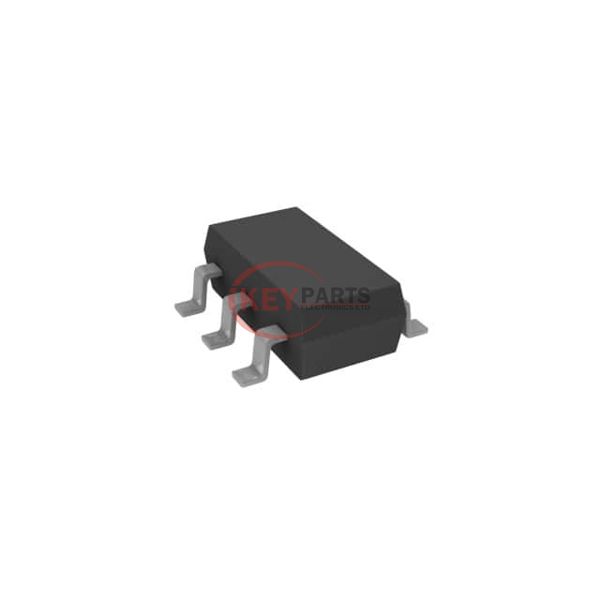

Lmages are for reference only See Product Specitications

IR (Infineon Technologies) BSD314SPEH6327XTSA1

Manufacturer :
IR (Infineon Technologies)
Mfr. Part # :
BSD314SPEH6327XTSA1
Description
MOSFET P-CH 30V 1.5A SOT363-6
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
BSD314SPEH6327XTSA1 PDF
In Stock
7459
BSD314SPEH6327XTSA1 Tech Specifications
SeriesOptiMOS™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C1.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs140mOhm @ 1.5A, 10V
Vgs(th) (Max) @ Id2V @ 6.3µA
Gate Charge (Qg) (Max) @ Vgs2.9 nC @ 10 V
Vgs (Max)±20V
Input Capacitance (Ciss) (Max) @ Vds294 pF @ 15 V
FET Feature-
Power Dissipation (Max)500mW (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackagePG-SOT363-6
Package / Case6-VSSOP, SC-88, SOT-363
Request Quote Now
Request Quote Now

We can supply BSD314SPEH6327XTSA1, use the request quote form to request BSD314SPEH6327XTSA1 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BSD314SPEH6327XTSA1. The price and lead time for BSD314SPEH6327XTSA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BSD314SPEH6327XTSA1. We look forward to working with you to establish long-term relations of cooperation.
