CSD17313Q2

Enlarger

Lmages are for reference only See Product Specitications

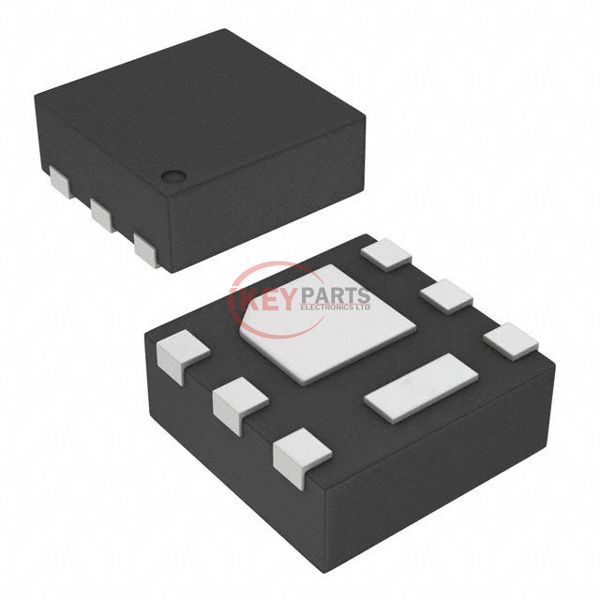

Texas Instruments CSD17313Q2

Manufacturer :
Texas Instruments
Mfr. Part # :
CSD17313Q2
Description
MOSFET N-CH 30V 5A 6WSON
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
CSD17313Q2 PDF
In Stock
3975
CSD17313Q2 Tech Specifications
SeriesNexFET™
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)30 V
Current - Continuous Drain (Id) @ 25°C5A (Tc)
Drive Voltage (Max Rds On, Min Rds On)3V, 8V
Rds On (Max) @ Id, Vgs30mOhm @ 4A, 8V
Vgs(th) (Max) @ Id1.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs2.7 nC @ 4.5 V
Vgs (Max)+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds340 pF @ 15 V
FET Feature-
Power Dissipation (Max)2.3W (Ta)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeSurface Mount
Supplier Device Package6-WSON (2x2)
Package / Case6-WDFN Exposed Pad
Request Quote Now
Request Quote Now

We can supply CSD17313Q2, use the request quote form to request CSD17313Q2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number CSD17313Q2. The price and lead time for CSD17313Q2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# CSD17313Q2. We look forward to working with you to establish long-term relations of cooperation.
