DMPH4015SK3Q-13

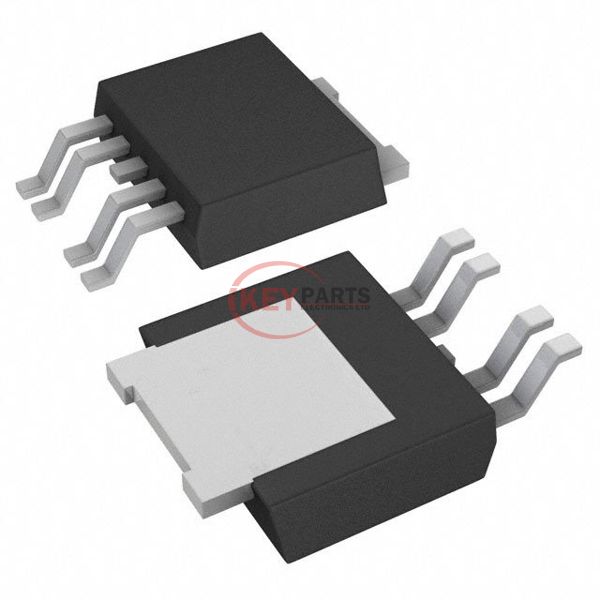

Enlarger

Lmages are for reference only See Product Specitications

Zetex Semiconductors (Diodes Inc.) DMPH4015SK3Q-13

Manufacturer :
Zetex Semiconductors (Diodes Inc.)
Mfr. Part # :
DMPH4015SK3Q-13
Description
MOSFET P-CH 40V 14A/45A TO252-4L
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
DMPH4015SK3Q-13 PDF
DMPH4015SK3Q-13 Tech Specifications
SeriesAutomotive, AEC-Q101
PackageTape & Reel (TR)Cut Tape (CT)
Part StatusActive
FET TypeP-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)40 V
Current - Continuous Drain (Id) @ 25°C14A (Ta), 45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Rds On (Max) @ Id, Vgs11mOhm @ 9.8A, 10V
Vgs(th) (Max) @ Id2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs91 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds4234 pF @ 20 V
FET Feature-
Power Dissipation (Max)1.7W (Ta)
Operating Temperature-55°C ~ 175°C (TJ)
Mounting TypeSurface Mount
Supplier Device PackageTO-252-4L
Package / CaseTO-252-5, DPak (4 Leads + Tab), TO-252AD
Request Quote Now
Request Quote Now

We can supply DMPH4015SK3Q-13, use the request quote form to request DMPH4015SK3Q-13 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number DMPH4015SK3Q-13. The price and lead time for DMPH4015SK3Q-13 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# DMPH4015SK3Q-13. We look forward to working with you to establish long-term relations of cooperation.
