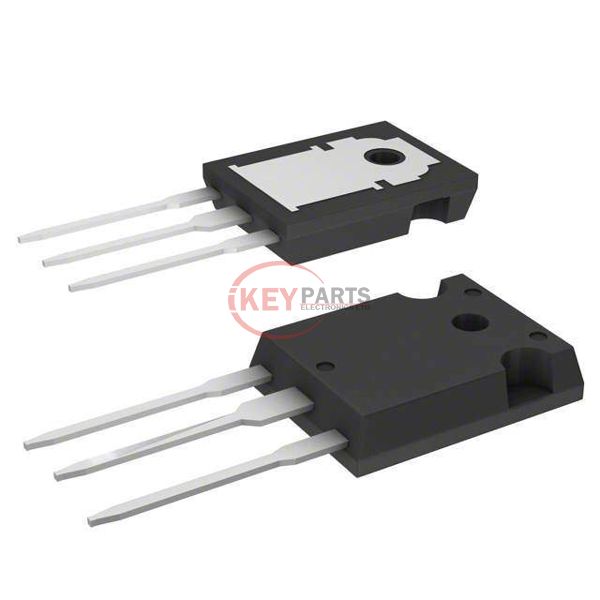

STW56NM60N

Enlarger

Lmages are for reference only See Product Specitications

STMicroelectronics STW56NM60N

Manufacturer :
STMicroelectronics
Mfr. Part # :
STW56NM60N
Description
MOSFET N-CH 600V 45A TO247
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
STW56NM60N PDF
STW56NM60N Tech Specifications
SeriesMDmesh™ II
PackageTube
Part StatusObsolete
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)600 V
Current - Continuous Drain (Id) @ 25°C45A (Tc)
Drive Voltage (Max Rds On, Min Rds On)10V
Rds On (Max) @ Id, Vgs60mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs150 nC @ 10 V
Vgs (Max)±25V
Input Capacitance (Ciss) (Max) @ Vds4800 pF @ 50 V
FET Feature-
Power Dissipation (Max)300W (Tc)
Operating Temperature150°C (TJ)
Mounting TypeThrough Hole
Supplier Device PackageTO-247
Package / CaseTO-247-3
Request Quote Now
Request Quote Now

We can supply STW56NM60N, use the request quote form to request STW56NM60N pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STW56NM60N. The price and lead time for STW56NM60N depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STW56NM60N. We look forward to working with you to establish long-term relations of cooperation.
