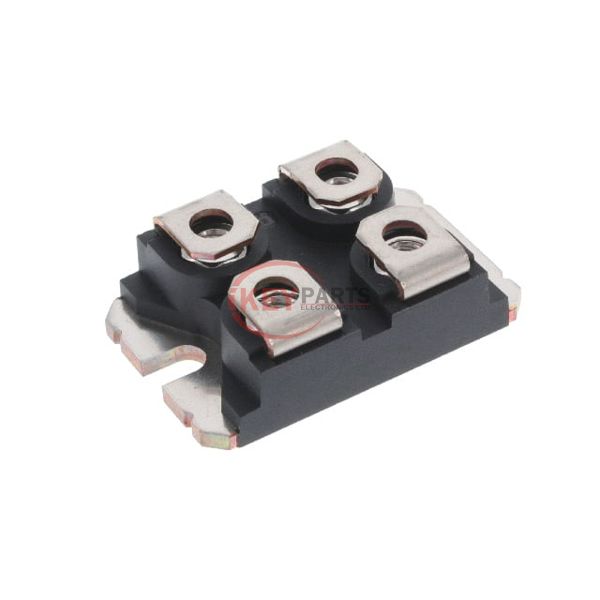

MSC40SM120JCU2

Enlarger

Lmages are for reference only See Product Specitications

Roving Networks / Microchip Technology MSC40SM120JCU2

Manufacturer :
Roving Networks / Microchip Technology
Mfr. Part # :
MSC40SM120JCU2
Description
TRANS SJT N-CH 1.2KV 55A SOT227
Catalog
Transistors - FETs, MOSFETs - Single
Lead Free Status / RoHS Status
Contains lead / RoHS non-compliant
DataSheet
MSC40SM120JCU2 PDF
In Stock
518
MSC40SM120JCU2 Tech Specifications
Series-
PackageTube
Part StatusActive
FET TypeN-Channel
TechnologySiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss)1.2 kV
Current - Continuous Drain (Id) @ 25°C55A (Tc)
Drive Voltage (Max Rds On, Min Rds On)20V
Rds On (Max) @ Id, Vgs50mOhm @ 40A, 20V
Vgs(th) (Max) @ Id2.7V @ 1mA
Gate Charge (Qg) (Max) @ Vgs137 nC @ 20 V
Vgs (Max)+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds1990 pF/m @ 1000 V
FET Feature-
Power Dissipation (Max)245W (Tc)
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Supplier Device PackageSOT-227 (ISOTOP®)
Package / CaseSOT-227-4, miniBLOC
Request Quote Now
Request Quote Now

We can supply MSC40SM120JCU2, use the request quote form to request MSC40SM120JCU2 pirce and lead time. IKeyParts.com a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number MSC40SM120JCU2. The price and lead time for MSC40SM120JCU2 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# MSC40SM120JCU2. We look forward to working with you to establish long-term relations of cooperation.
